Duronic TV Bracket, Cantilever Wall Mount Television Screen, Tilting Action, For Flat Screen LCD / LED / OLED / QLED (TVB1120)
by Duronic
£14.99
Enahnced Description
Wall Mounted TV Bracket TVB1120
Mounting your screen onto a wall will elevate it to a better position and at the same time will free up space from the area below. It is particularly a great space saver for smaller rooms that cannot accommodate a television on top of a table or desk, or for areas where you want the screen to be easily viewed from around the room.
The Duronic TVB1120 wall-mounted television bracket is compatible with a wide range of LED, LCD, plasma, QLED, OLED flat-screen TVs. Made of durable electrostatically finished steel, it provides reliable heavy-duty support for your screen so you can rest assured that no matter what happens, it will be held securely and level at all times. The cantilever style arm allows you to manoeuvre the bracket backwards, forwards and side-to-side enabling you to find the best position for your screen.

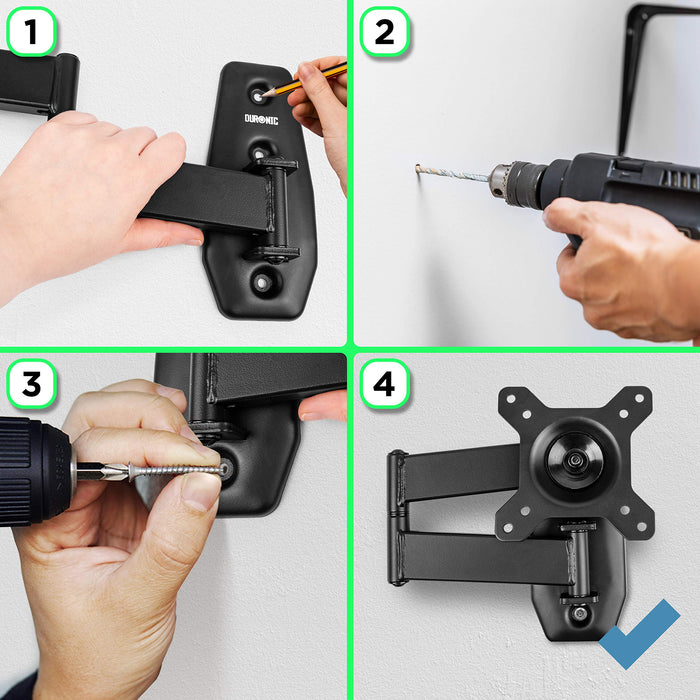

The TVB1120 is easy to install; all you will need is a drill, a long screwdriver and a second pair of hands to help get the TV up onto the wall.
The kit comes with all the screws and fixings needed for most models of TV’s, however, there may be some newer models that require different size screws that are not included in the fixings kit. Scroll down to find out which screws are included in the kit...
How to Check if This Mount is Suitable for Your Screen
SCREEN SIZE
This mount is suitable for screens sized between 13" and 30".
WEIGHT
The maximum weight capacity for this bracket is 18kg/40lbs.
VESA COMPATIBILITY
This mount is is compatible with TVs that have VESA mounting holes that are: 75x75 and 100x100mm.
To check if your TV is compatible; simply measure the horizontal distance in mm between the holes at the back of your TV. If they are the same as the measurements above, it means your TV will fit. This bracket can fit up to 100x100mm VESA mounting holes.

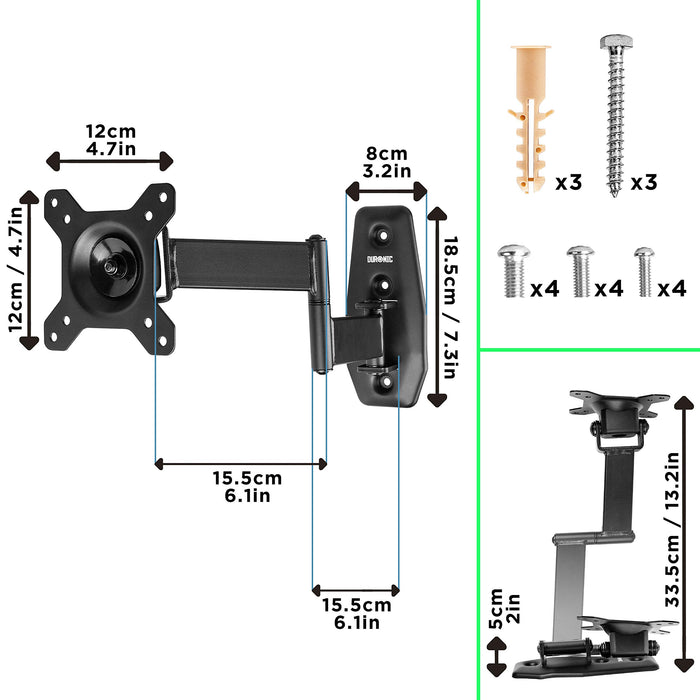

Overall Dimensions
The TVB1120 is easy to install using the fixings provided.
The overall dimensions are 18.5x12cm / 7.3x4.7in. The wall plate is 18.5x8cm / 7.3x3.2in.

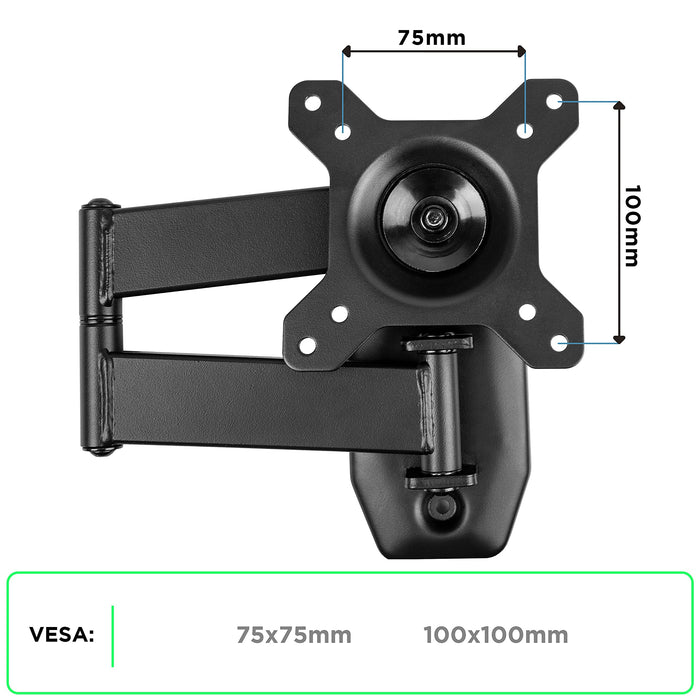

VESA Sizes Compatible
It is compatible with TVs that have VESA mounting holes that are:
75x75mm 100x100mm
Adjustable Extending Arm
The extendable arm on the TVB1120 can be adjusted from 5cm/2in and 33.5cm/13.2in.
This flexibility is great for positioning the screen in a unique angle for when you need to manoeuvre it to cater for different occasions.
Maximum Weight Capacity
Made with cold rolled steel this bracket is heavy-duty and will support your television securely.
The maximum weight flat screen television this bracket can hold is 18kg/40lb.
Is Your Screen is Compatible?
This smaller-sized bracket will hold any screens sized between 13 inches and 30 inches.

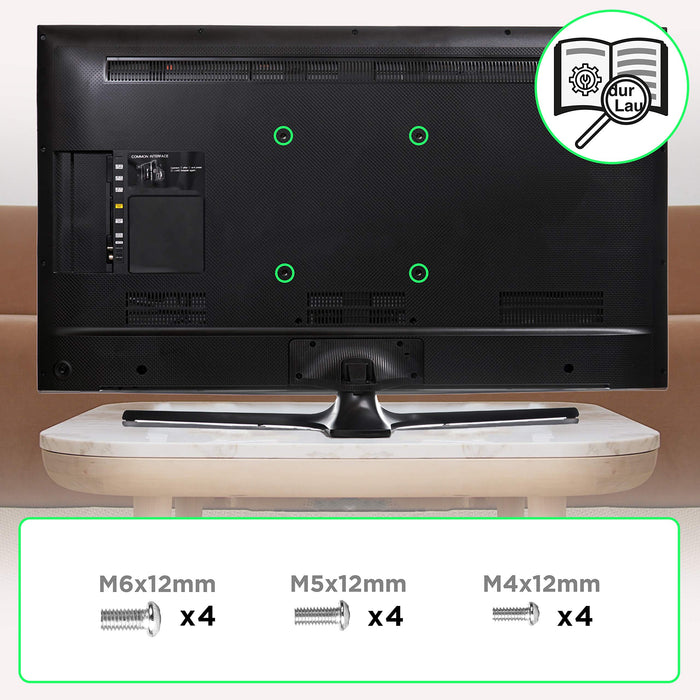

Universal Fixings
This bracket comes with all the screws and fixings needed for up to 99% of TV’s.
This kit includes M4x12, M5x12 & M6x12mm.

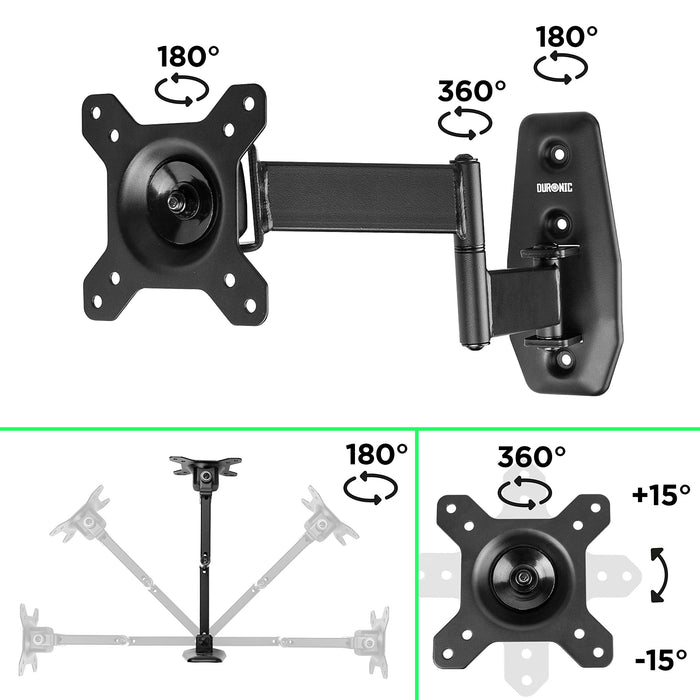

Highly Adjustable Arm
The arm can rotate in three places on the joints: 108° / 360° / 180".
This allows for the arm to be adjusted into different lengths and positions.
Tilting Ability
The TVB1120 VESA head can rotate 360° and it has a tilt capability of +15°/-15° which enables you to adjust the screen to the angle to suit your needs.
